Roma

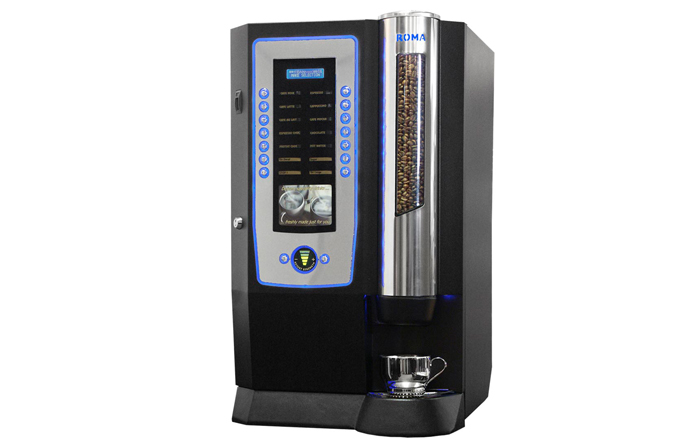

The Roma supplied by TDR Vending is quite simply our symbol of excellence. Exhibiting a striking combination of matt black cabinet, contrasted with highly polished stainless steel features and breathtaking neon-effect backlighting, this superb speciality machine perfectly complements the high quality of hot beverages produced.

Roma Specifications

Capacity

Selections

Ingredient canisters

14 (pre-programmed for 9 delicious speciality beverages plus sugar, hot water dispense and stop - Leaving 2 spare for additional product choice)

5 x Ingredient canisters
Canister 1 1.7 litres capacity
Canisters 2, 3 ,4 and 5 2.1 litres each
Optional 4 canister machine - Canisters 3 & 4 replaced with one (3.7 litres) canister

Dimensions

Machine

Coin Operated Machine

Change-giver Machine

Machine & Cabinet

Machine & Condiment Stand

402mm (w) x 690mm (h) x 560mm (d)
697mm (w) x 690mm (h) x 560mm (d) (with cup warmer)

494mm (w) x 690mm (h) x 560mm (d)
789mm (w) x 690mm (h) x 560mm (d) (with cup warmer)

504mm (w) x 690mm (h) x 560mm (d)
799mm (w) x 690mm (h) x 560mm (d) (with cup warmer)

402mm (w) x 1600mm (h) x 560mm (d)

617mm (w) x 690mm (h) x 560mm (d)

Weight

Machine

47 Kg

Power

Single Heater
Operating Voltage

Maximum power consumption

Power Cable

Double Heater (optional)
Operating Voltage

Maximum power consumption

Power Cable

220-240 V, 50 Hz, single phase

2.5KW (13A fuse)

1.4 metre mains lead

220-240 V, 50 Hz, single phase

5KW, 22A (must be connected by a qualified
electrician to 30 A supply via suitable isolating switch)

1.4 metre mains lead

Water

Water Source

Water Pressure

Mains water connection via ¾ BSP fitting (connection hose available)

Mains water pressure 1.5 - 10 bar (0.15 Mpa - 1 Mpa)
Optional pumped water system (from storage vessel situated in base cabinet) ideal for occasional situations where a mains water supply cannot be provided

Payment Systems

Available as a free vend machine or fitted with full electronic coin mechanism which accepts all coins plus token or even with full change-giving facility

Separately locking cash box

Free vend master override switch

Full audit facility built in as standard

I-Key cashless payment system compatible

Options

Custom designed matching base cabinet featuring complimentary styling, large (lockable) storage space, stainless steel trim and feature lighting

'Go Large' option provides the facility to give out different size portions from the same machine

'Go Decaf' option

Complimenting condiment unit providing ideal storage for items such as stir-sticks, sugar sachets, milk jiggers, etc.

Optional display of genuine coffee beans

Hygiene kit comprising of complete set of mixing chambers paddles, hoses, nozzles, etc

High quality water filtration system for optimum drink quality

22Amp heater upgrade

Compatible with a wide range of slave machines to offer a complete refreshment solution
