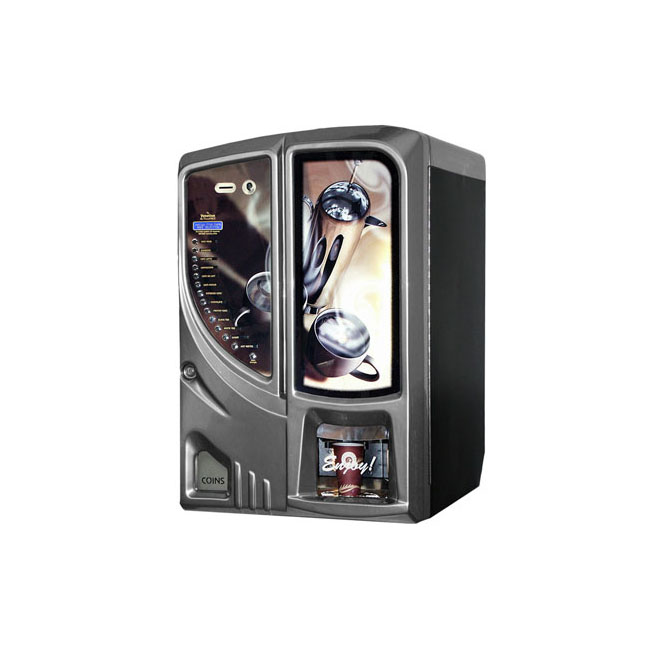

The Venetian offers all of the features and benefits usually seen on much larger 'traditional' floor standing machines, but in a far more compact (and cost effective) table top format. The Venetian offers a staggering cup capacity of over 400 internal cups which is almost twice that of its nearest rival.

Venetian Specifications



Ingredient canisters

Cup capacity (71mm, 73mm, 77mm)


Coffee & Whitener/Topping Canisters: 5 (each with 3.1 litres capacity)

Incredible 400+ (exact amount depends upon selected cup size)



Machine & Cabinet

Machine & Condiment Unit

540mm (w) x 800mm (h) x 576mm (d)

540mm (w) x 1710mm (h) x 576mm (d)

755mm (w) x 1710mm (h) x 576mm (d)



60 Kg


Single Heater (optional)
Operating Voltage

Maximum power consumption

Power Cable

Double Heater (optional)
Operating Voltage

Maximum power consumption

Power Cable

< /td>

220-240 V, 50 Hz, single phase

2.5KW (13A fuse)

1.4 metre mains lead

220-240 V, 50 Hz, single phase

5KW 22A fuse (must be connected by a qualified electrician to 30A supply via suitable isolating switch)

1.4 metre mains lead


Water Source

Water Pressure

Mains water connection via ¾" BSP fitting (connection hose available if required)

Mains water pressure 1.5 - 10 bar (0.15 Mpa - 1 Mpa)

Optional base cabinet can be fitted with water storage vessel and pump system to eliminate the need for a mains water supply.

Payment Systems

Available as either free vend machine, fitted with fully electronic coin validator which accepts all coins plus token or full change-giver.

Fully compatible with the I-Key cashless payment system.

Individual drink pricing together with entirely different discount price structure
(when used with the I-Key system)

Cash box located in separately locking area for double security


Custom designed matching base cabinet featuring complimentary styling and large (lockable) storage space.

'Go Decaf' option

'Use own cup' option enables use of china or other cup as well as, automatically dispensed cup

Complimenting condiment unit providing ideal storage for items such as stir-sticks, sugar sachets, milk jiggers, etc.

Hygiene kit comprising of complete sets of mixing chambers, paddles, hoses, nozzles, etc.

High quality water filtration system for optimum drink quality.

22 Amp heater upgrade

Compatible with a wide range of slave machines to offer a complete refreshment solution
