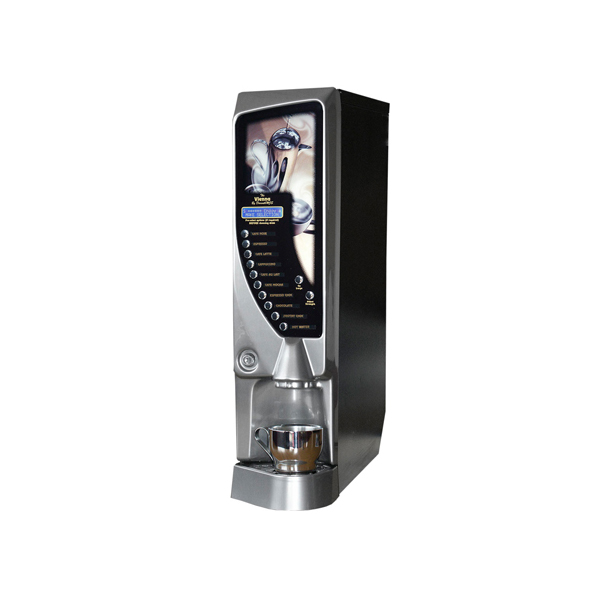

Vienna

The Vienna represents a completely new approach to machine design and has been exclusively styled to compliment the high quality beverages produced. At less than 6.5 inches wide this incredible, technologically advanced speciality machine will fit just about anywhere and delivers superb quality speciality drinks from just the push of one button.

Vienna Specifications

<table class="table table-hover"> <tbody> <tr> <td> <h4>Capacity</h4> <p>Selections</p> <p>Ingredient canisters</p></td> <td> <h4></h4> <p>10</p> <p>Coffee &amp; Whitener/Topping Canisters: 1.4 litres capacity<br> Chocolate: Extra Large 2.2 litres (ensures capacity is matched with other ingredients)</p></td> </tr> <tr> <td> <h4>Dimensions></h4> <p>Machine</p> <p>Machine &amp; Cabinet</p> <p>Machine &amp; Condiment Unit</p></td> <td> <h4></h4> <p> 165mm (w) x 658mm (h) x 515mm (d)</p> <p>560mm (w) x 1568mm (h) x 550mm (d)</p> <p>385mm (w) x 658mm (h) x 515mm (d)</p></td> </tr> <tr> <td> <h4>Weight></h4> <p>Machine </p></td> <td> <h4></h4> <p> 19 Kg </p></td> </tr> <tr> <td> <h4>Power></h4> <p>Operating voltage</p> <p>Maximum power consumption</p> <p>Power Cable</p> </td> <td> <h4></h4> <p>220-240 V, 50 Hz, single phase</p> <p>2.5KW (13A fuse)</p> <p> 1.4 metre mains lead</p> </td> </tr> <tr> <td> <h4>Water></h4> <p>Water Source</p> <p>Water Pressure </p></td> <td> <h4></h4> <p> Mains water connection via ¾" BSP fitting</p> <p>Mains water pressure 1.5 - 10 bar (0.15 Mpa - 1 Mpa)</p> <p>Optional base cabinet can be fitted with water storage vessel and pump system to eliminate the need for a mains water supply.</p></td> </tr> <tr> <td colspan="2"> <h4>Payment Systems></h4> <p>Although predominantly designed as a free vend machine, the Vienna can be fitted with the I-Key cashless system to provide a complete payment or total cost control solution.</p></td> </tr> <tr> <td colspan="2"> <h4>Options></h4> <p>'Strength Adjustment' option - provides users with the additional benefit of adjusting drink strength to their own individual requirement</p> <p>?Go Large? option - provides the facility to give out different size portions from the same machine.</p> <p>Complimenting condiment unit providing ideal storage for items such as stir-sticks, sugar sachets, milk jiggers, etc.</p> <p>Hygiene kit comprising of complete sets of mixing chambers, paddles, hoses, nozzles, etc.</p> <p>High quality water filtration system for optimum drink quality</p> <p>Water Connection Hose</p> <p>Compatible with a wide range of DarenthMJS slave machines to offer a complete refreshment solution</p></td> </tr> </tbody> </table>
